HR 9655

4 windings

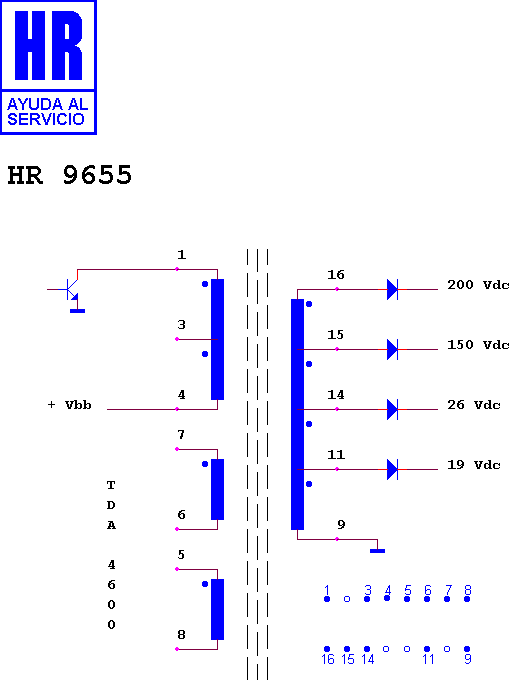

Schematic diagram for HR 9655 — schematic

Manufacturer equivalents (7)

32036120 · 93655.00 · 93655.01 · AZ 56120 · HR 9605 · HR 9655 · LM 86120 A

Search this part in the full database
