HR 9641

type CH · family 203 · 3 windings · 291 g

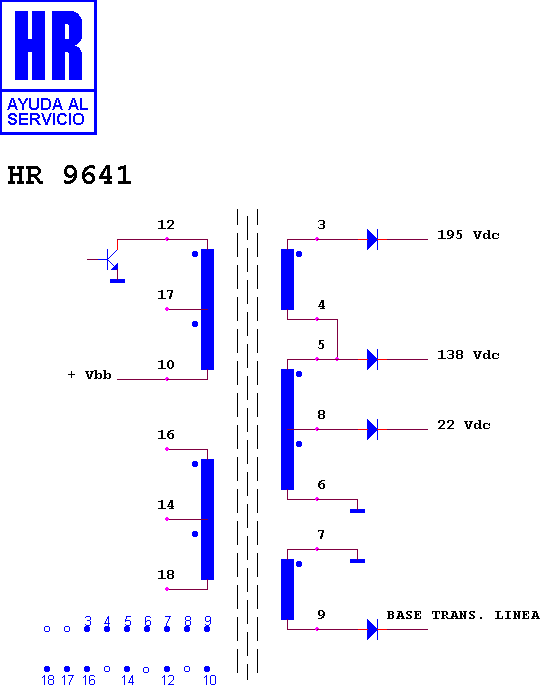

Schematic diagram for HR 9641 — schematic

Manufacturer equivalents (1)

HR 9641

Search this part in the full database
