HR 9614

type CH · family 205 · 5 windings · 166 g

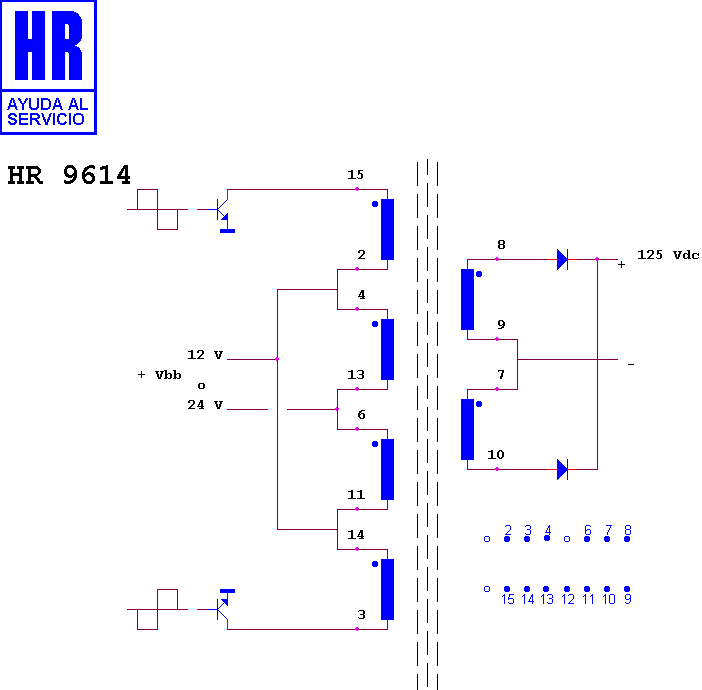

Schematic diagram for HR 9614 — schematic

Manufacturer equivalents (1)

HR 9614

Search this part in the full database
