HR 9563

type CH · family 201 · 3 windings · 194 g

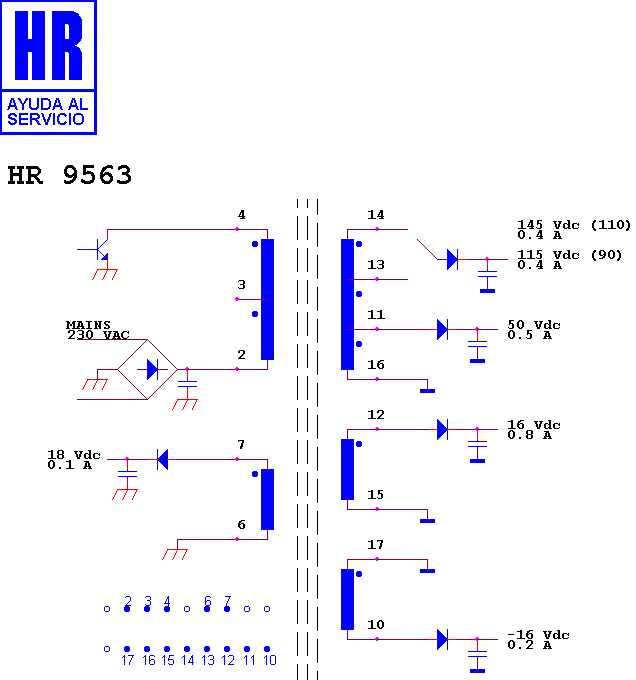

Schematic diagram for HR 9563 — schematic

Manufacturer equivalents (1)

34573

Search this part in the full database
