HR 9548

type CH · family 206 · 6 windings · 160 g

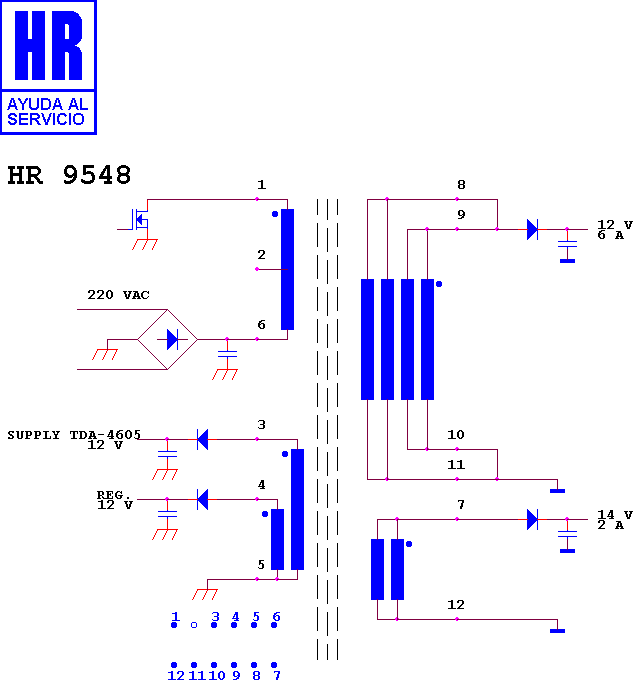

Schematic diagram for HR 9548 — schematic

Manufacturer equivalents (2)

1708 · HR 9548-00

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
