HR 9497

type CH · family 291 · 4 windings · 172 g

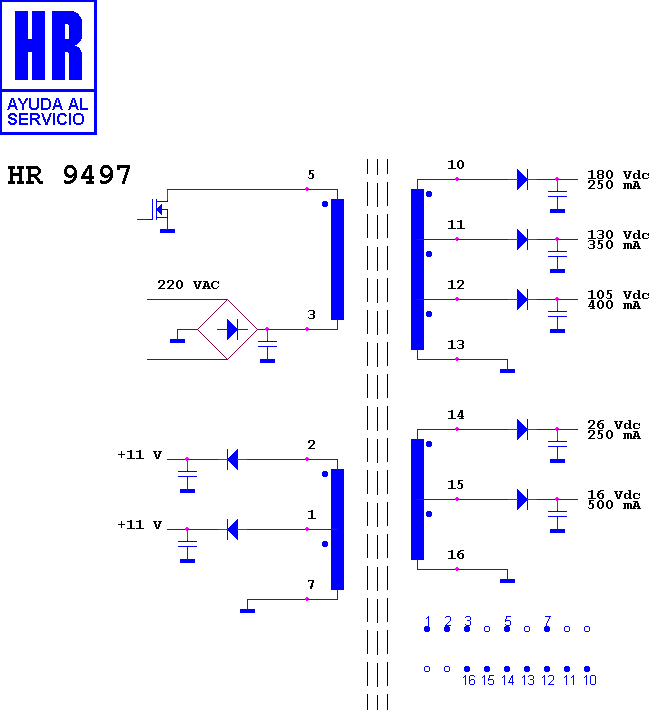

Schematic diagram for HR 9497 — schematic

Manufacturer equivalents (1)

32039810

Search this part in the full database
