HR 9422

type CH · family 260 · 5 windings · 245 g

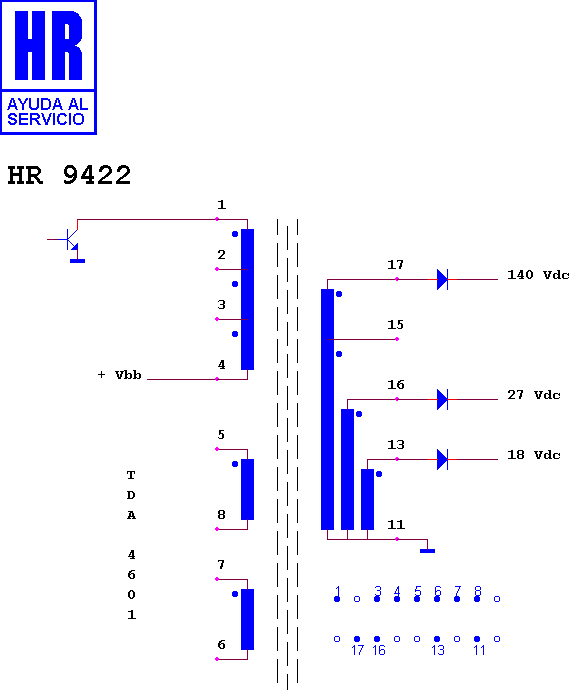

Schematic diagram for HR 9422 — schematic

Manufacturer equivalents (1)

T85/050R

Search this part in the full database
