HR 9366

5 windings

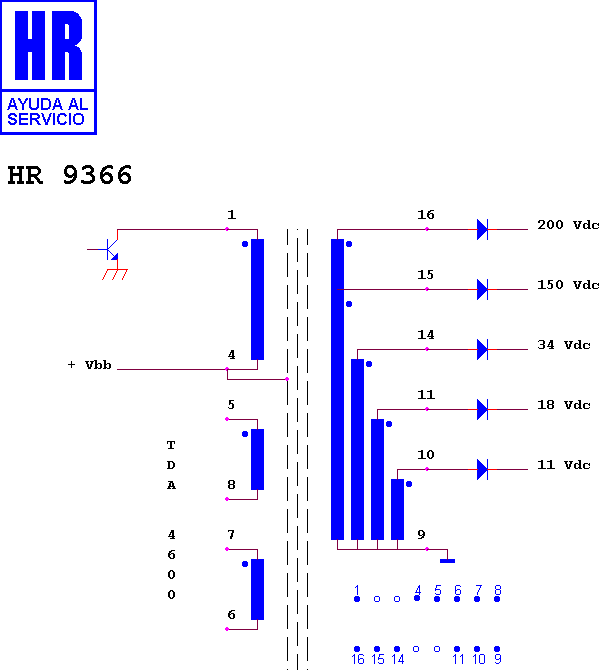

Schematic diagram for HR 9366 — schematic

Manufacturer equivalents (4)

29500.603.97 · 29701.776.97 · AZ 56408 · ME/7084-00

Search this part in the full database
