HR 9321

4 windings

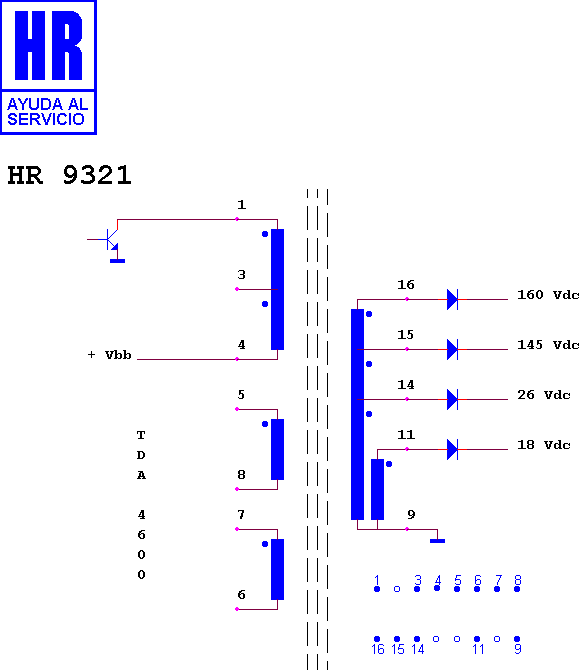

Schematic diagram for HR 9321 — schematic

Manufacturer equivalents (3)

29.6038 · ME/7120-00 · SM 42/14

Search this part in the full database
