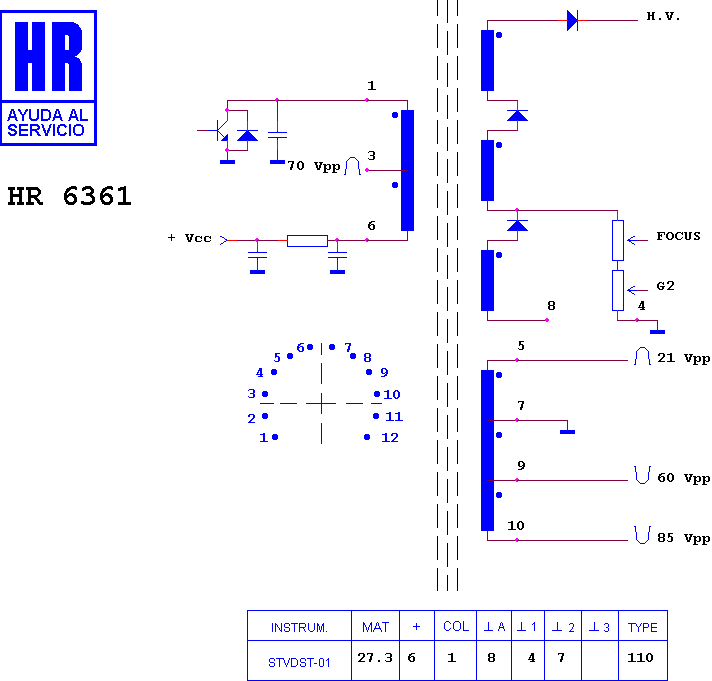

HR 6361

type ST · family 1BP1 · 27.3 kV maximum anode voltage · 110° deflection · 3 windings · 412 g

Manufacturer equivalents (2)

2433701 · 433701

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
